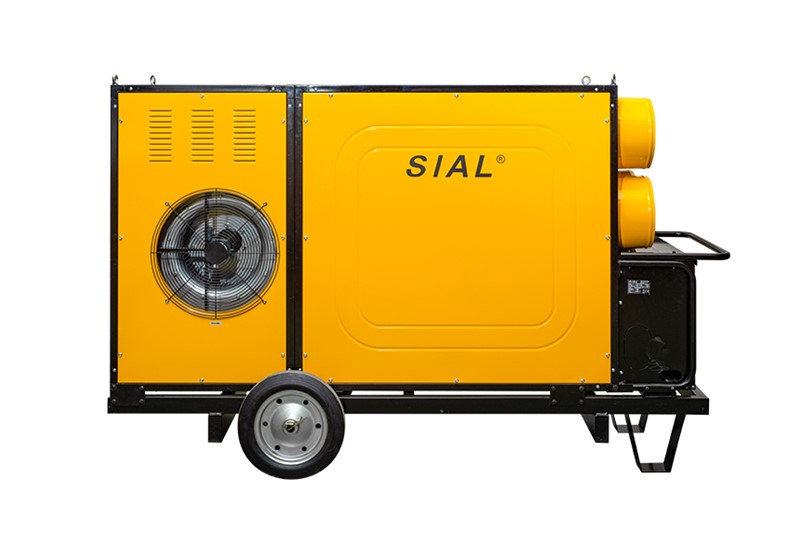

IY220 Diesel Forced Air Heater
Description
Specifications:
SIA-IY220 is a super-large fuel oil heater. It adopts a metal shell body, which is wear-resistant, pressure-resistant and shock-resistant, and has good product performance. The stainless steel double-layer sealed combustion chamber and imported Riello burner ensure more complete and comprehensive combustion. The air outlet can be selected as a single air outlet or four air outlets. It has a strong air outlet force and a long blowing distance. Functionally, the overheat power-off protection and shutdown delay function make the machine more reassuring and safe to use.
| Product | IY1220 | ||
| Heating power | 220KW | 182900Kcal/h | 750900Btu/h |
| Voltage/Frequency | 380-400V/50Hz | ||
| Electric power | 4400W | ||
| Electric current | 8.2A | ||
| Air volume | 14000m³/h | ||
| Types of fuel | Light diesel oil and kerosene | ||
| Fuel consumption | 22L/h | ||
| Work pressure | 45bar | ||
| Temperature setting range | 5-45℃ | ||
| Dust-proof and water-proof grade | IP24 | ||
| Noise | 75dB(A) | ||
| Gross weight/net weight | 300kg/250kg | ||
| Product size | 2520*790*1750mm | ||
| Packaging size | 2570*845*1520mm | ||
Advantage
- The air volume is large and the air outlet is far
- There are single-outlet and four-outlet options available
- Riello burner
- Exhaust gas emission chimney
- Overheat protection
- Shutdown delay function
- Stainless steel double-layer sealed combustion chamber
Application：

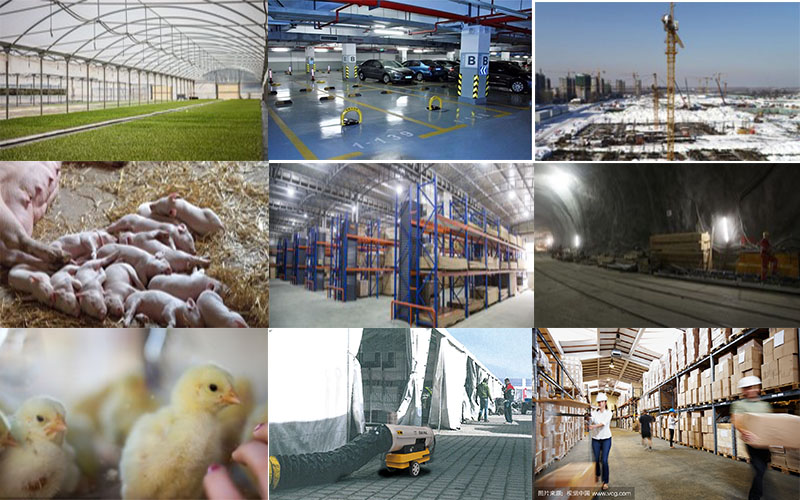

Construction, Commercial building, Bar, Agriculture, Warehouse, Office, Animal husbandry, garage, workshop, farmland
