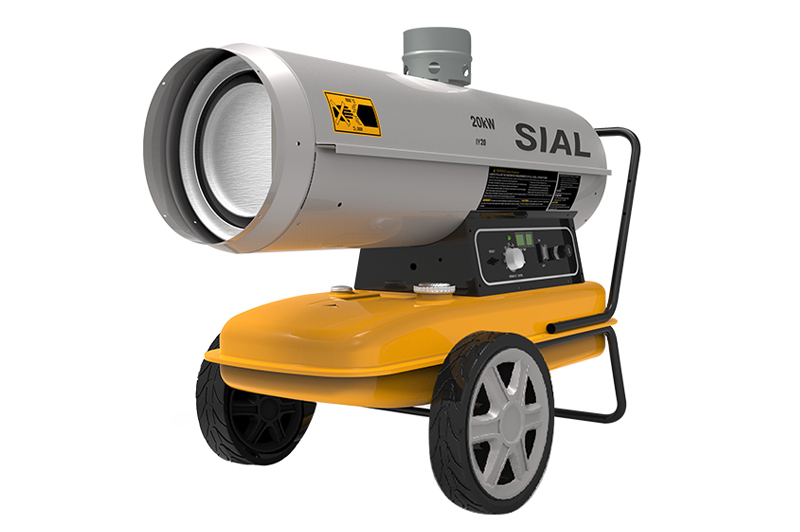

IY20 Diesel Forced Air Heater

SIAL-IY20 is a 20KW indirect fuel oil heater. It is an energy-saving heater with a stainless steel combustion chamber as the carrier and a delayed cooling and purification function after shutdown. The IY20 adopts an internal structure with built-in automatic reset, motor overheat protection and external manual reset design. This enables the machine to receive timely power-off protection during high-speed operation and heating, ensuring personal and property safety. The IY20 is equipped with imported oil pumps and nozzles, achieving four layers of effective filtration. During the filtration process, impurities can be effectively filtered out, significantly enhancing the stability and efficiency of fuel combustion. Meanwhile, in terms of appearance, the IY20 comes with a standard fuel level gauge in its own fuel tank, which can monitor the fuel consumption of the tank in real time and replenish it promptly.

Product	IY20
Heating power	20KW	17200Kcal/h	68260Btu/h
Voltage/Frequency	220-240V/50Hz
Electric power	150W
Electric current	0.95A
Air volume	800m³/h
Types of fuel	Light diesel oil and kerosene
Fuel tank volume	32L
Fuel consumption	1.95L/h
The working hours of each tank of oil	16h
Work pressure	8bar
Temperature setting range	5-45℃
Dust-proof and water-proof grade	IP24
Noise	78dB(A)
Gross weight/net weight	39kg/35kg
Product size	1015*484*715mm
Packaging size	987*452*598mm
