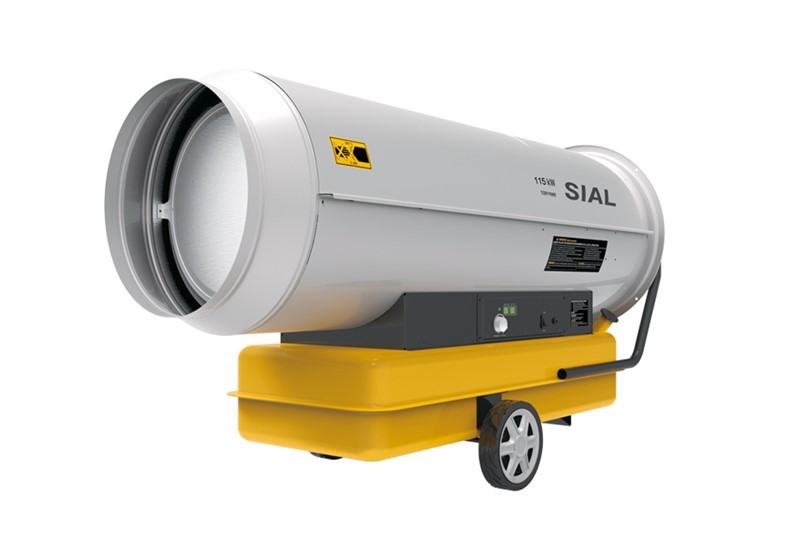

Y115A Diesel Forced Air Heater

SIAL-Y115A is an 115KW direct-fired fuel heater. In terms of core components, imported Danfoss oil pumps and nozzles are adopted to enhance the filtration performance and achieve four-layer filtration in the oil circuit, significantly improving the stability of combustion. The Y115A adopts core functions such as built-in dual protection, shutdown delay purification and cooling system, electronic and photoelectric flame sensing controller, etc., making the machine more efficient and safe during operation. During the operation of the machine, the enlarged shell design and excellent ventilation and heat insulation functions can ensure that the outdoor unit is not hot to the touch, making it more reassuring to use. The air outlet is ingeniously designed with the function of connecting an external hose, which can solve the problem of large space distance and low heating effect, thus achieving efficient heating and warmth.

Product	Y115A
Heating power	115KW	98900Kcal/h	393000Btu/h
Voltage/Frequency	220-240V/50Hz
Electric power	1150W
Electric current	6.5A
Air volume	5000m³/h
Types of fuel	Light diesel oil and kerosene
Fuel tank volume	100L
Fuel consumption	10.98L/h
The working hours of each tank of oil	9h
Work pressure	10bar
Temperature setting range	5-45℃
Dust-proof and water-proof grade	IP24
Noise	91dB(A)
Gross weight/net weight	125kg/97kg
Product size	1605*621*103mm
Packaging size	1710*620*1074mm
