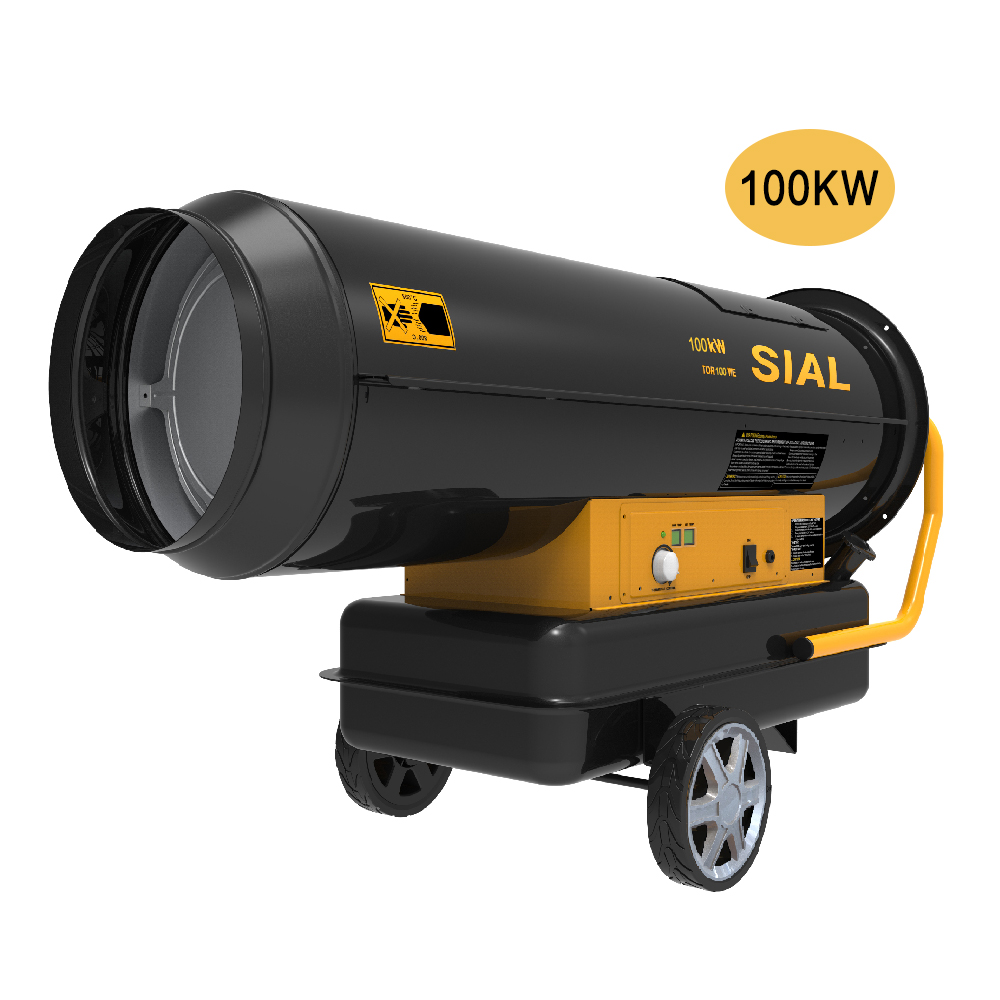

Y100A Diesel Forced Air Heater

SIAL-Y100A is an 100KW direct-fired fuel heater. In terms of core components, imported Danfoss oil pumps and nozzles are adopted to enhance the filtration performance and achieve four-layer filtration in the oil circuit, significantly improving the stability of combustion. The Y100A adopts core functions such as built-in dual protection, shutdown delay purification and cooling system, electronic and photoelectric flame sensing controller, etc., making the machine more efficient and safe during operation. During the operation of the machine, the enlarged shell design and excellent ventilation and heat insulation functions can ensure that the outdoor unit is not hot to the touch, making it more reassuring to use. The air outlet is ingeniously designed with the function of connecting an external hose, which can solve the problem of large space distance and low heating effect, thus achieving efficient heating and warmth.

Product	Y100A
Heating power	100KW	86000Kcal/h	341300Btu/h
Voltage/Frequency	220-240V/50Hz
Electric power	700W
Electric current	4A
Air volume	3000m³/h
Types of fuel	Light diesel oil and kerosene
Fuel tank volume	51L
Fuel consumption	9.54L/h
The working hours of each tank of oil	5h
Work pressure	10bar
Temperature setting range	5-45℃
Dust-proof and water-proof grade	IP24
Noise	92dB(A)
Gross weight/net weight	68kg/51kg
Product size	1379*566*767mm
Packaging size	1470*500*835mm
