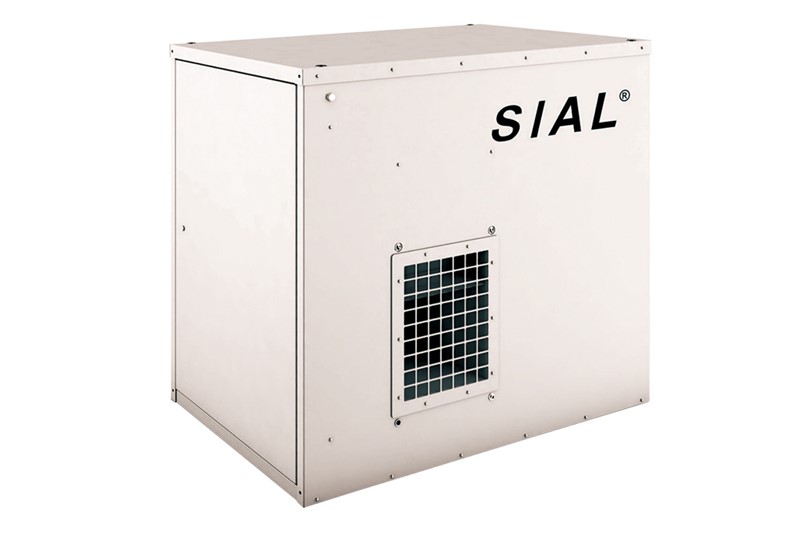

GQ75 Gas Forced Air Heater

SIAL-GQ75 is a high-quality gas heater with a full-patterned lead plate shell. It is also a professional heater used for heating livestock sheds and sterilization in drying rooms. The GQ75 adopts professional technology to provide triple protection: overheat protection, wind pressure protection and delay protection. In addition, the GQ75 adopts automatic pulse ignition, dual gas sources for use, and can also be connected to an external temperature control system. It is equipped with an independent oxygen supply motor to enhance combustion efficiency. The GQ75 is equipped with a door lock, which is convenient for maintenance and of good quality.

Product	GQ75			GQ75S
Heating power	75KW	64500Kcal/h	256000Btu/h	75KW	64500Kcal/h	256000Btu/h
Voltage/Frequency	220-240V/50Hz			220-240V/50Hz
Electric power	540W			540W
Electric current	2.5A			2.5A
Air volume	2100m³/h			2100m³/h
Types of fuel	LPG/NG			LPG/NG
Input air pressure	LPG：0.03-0.055bar                    NG：0.02-0.055bar			LPG：0.03-0.055bar                    NG：0.02-0.055bar
Gas consumption	LPG：2.3/3.1m³/h                    NG： 7.7/9.2m³/h			LPG：2.3/3.1m³/h                    NG： 7.7/9.2m³/h
Temperature setting range	0-50℃			0-50℃
Noise	75dB(A)			75dB(A)
Gross weight/net weight	60kg/56kg			60kg/56kg
Product size	782*466*722mm			782*466*722mm
Packaging size	820*525*765mm			820*525*765mm
