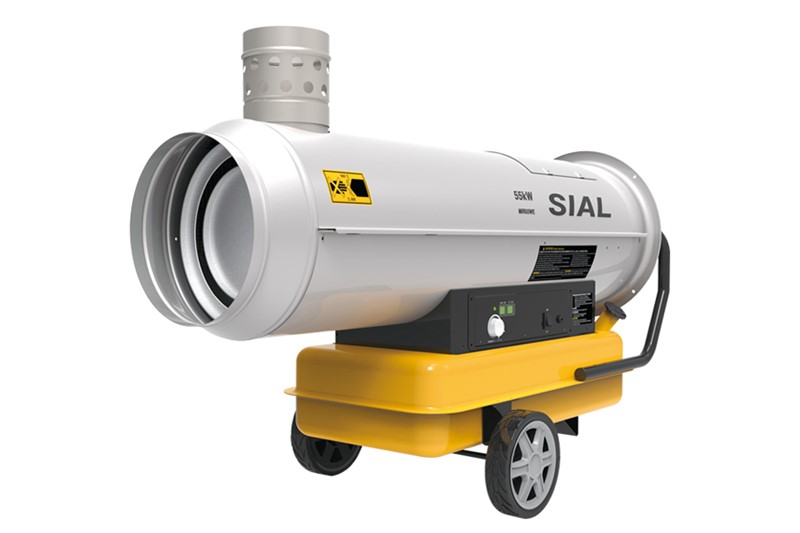

IY55 Diesel Forced Air Heater

SIAL-IY55 is a 55KW indirect fuel oil heater. It is an energy-saving heater with a stainless steel combustion chamber as the carrier and a delayed cooling and purification function after shutdown. The IY55 adopts an internal structure with built-in automatic reset, motor overheat protection and external manual reset design. This enables the machine to receive timely power-off protection during high-speed operation and heating, ensuring personal and property safety. The IY55 is equipped with imported oil pumps and nozzles, achieving four layers of effective filtration. During the filtration process, impurities can be effectively filtered out, significantly enhancing the stability and efficiency of fuel combustion. Meanwhile, in terms of appearance, the IY55 comes with a standard fuel level gauge in its own fuel tank, which can monitor the fuel consumption of the tank in real time and replenish it promptly.

Product	IY55
Heating power	55KW	47300Kcal/h	187700Btu/h
Voltage/Frequency	220-240V/50Hz
Electric power	500W
Electric current	2.3A
Air volume	2500m³/h
Types of fuel	Light diesel oil and kerosene
Fuel tank volume	51L
Fuel consumption	5.37L/h
The working hours of each tank of oil	9.4h
Work pressure	10bar
Temperature setting range	5-45℃
Dust-proof and water-proof grade	IP24
Noise	90dB(A)
Gross weight/net weight	75kg/54kg
Product size	1410*560*925mm
Packaging size	1470*500*835mm
