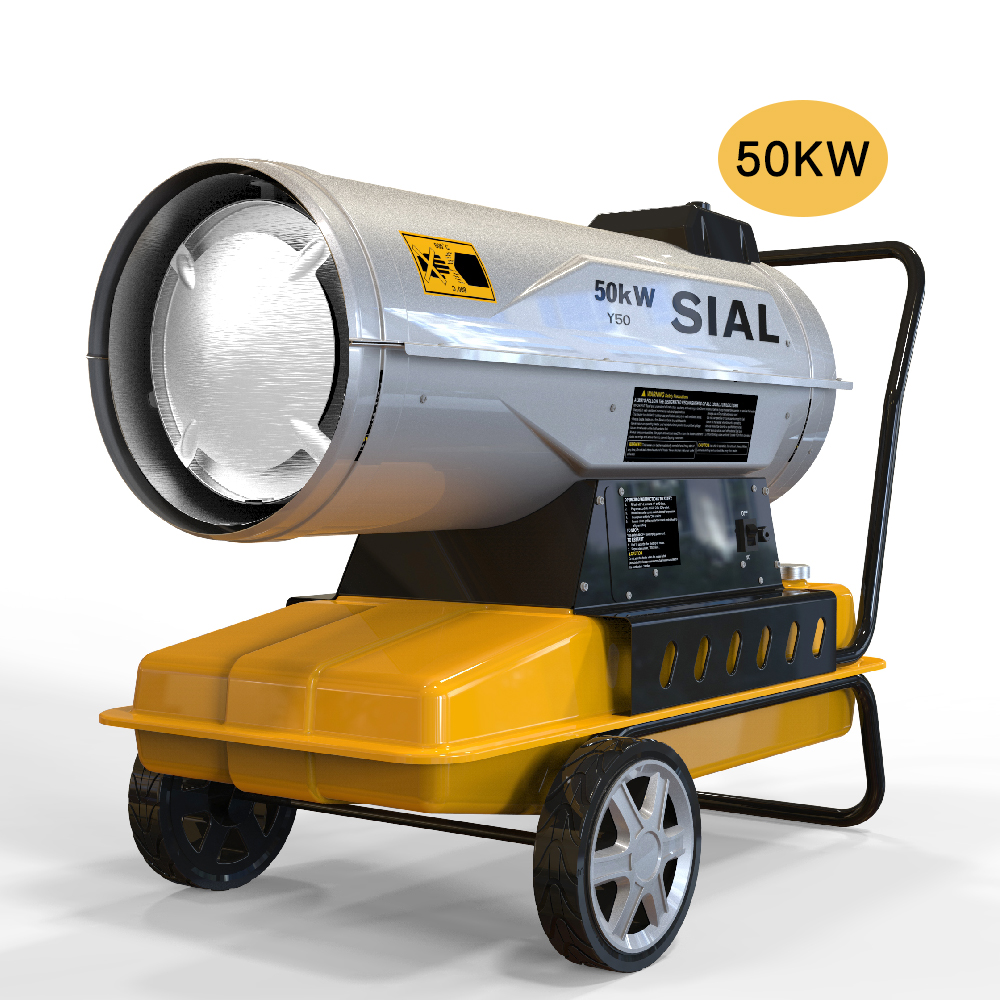

Y50 Diesel Forced Air Heater

SIAL-Y50 is a 50KW direct-fired fuel heater. It is a high-power heater with a stainless steel combustion chamber as the carrier and featuring a delayed cooling and purification function upon shutdown. The Y50 is designed with an internal overheat protector and motor overheat protection in its internal structure. This enables the machine to receive timely power-off protection during high-speed operation and heating, safeguarding personal and property safety. The Y50 is equipped with imported oil pumps and nozzles, achieving four layers of effective filtration. During the filtration process, impurities can be effectively filtered out, significantly enhancing the stability and efficiency of fuel combustion. Meanwhile, in terms of appearance, the Y50 is equipped with a standard fuel level gauge in its own fuel tank, which can monitor the fuel consumption of the fuel tank in real time and replenish it promptly. A dust-proof device interface is designed at the air inlet of the machine body, which can efficiently isolate impurities at the air inlet and ensure the machine operates more stably during the process.

Product	Y50
Heating power	50KW	43000Kcal/h	170700Btu/h
Voltage/Frequency	220-240V/50Hz
Electric power	350W
Electric current	2A
Air volume	2000m³/h
Types of fuel	Light diesel oil and kerosene
Fuel tank volume	51L
Fuel consumption	4.88L/h
The working hours of each tank of oil	10.4h
Work pressure	8bar
Temperature setting range	5-45℃
Dust-proof and water-proof grade	IP24
Noise	83dB(A)
Gross weight/net weight	43kg/35kg
Product size	1065*564*754mm
Packaging size	1026*490*700mm
