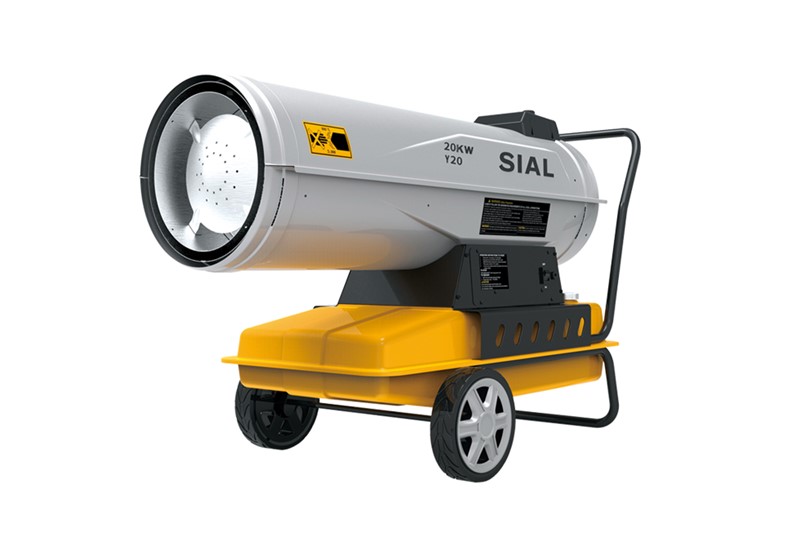

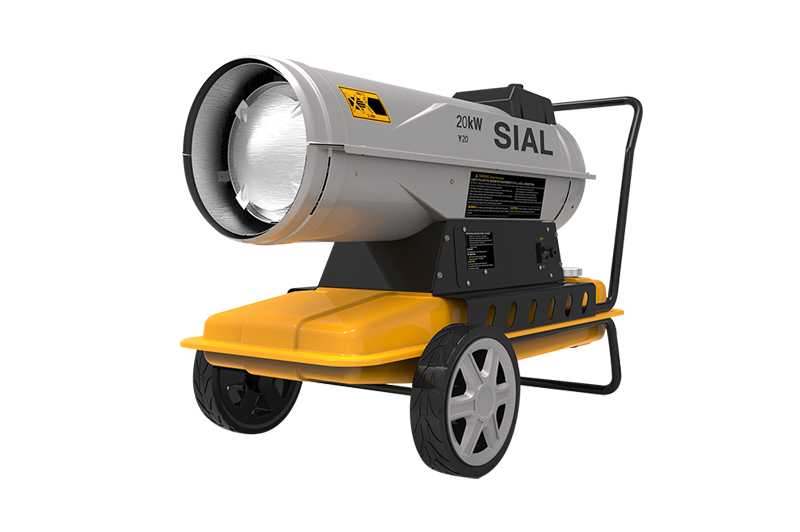

Y20 Diesel Forced Air Heater

SIAL-Y20 is a 20KW direct-fired fuel heater. It is a high-power heater with a stainless steel combustion chamber as the carrier and featuring a delayed cooling and purification function upon shutdown. The Y20 is designed with an internal overheat protector and motor overheat protection in its internal structure. This enables the machine to receive timely power-off protection during high-speed operation and heating, safeguarding personal and property safety. The Y20 is equipped with imported oil pumps and nozzles, achieving four layers of effective filtration. During the filtration process, impurities can be effectively filtered out, significantly enhancing the stability and efficiency of fuel combustion. Meanwhile, in terms of appearance, the Y20's own fuel tank is equipped with a standard fuel level gauge, which can monitor the fuel consumption of the tank in real time and replenish it promptly. A dust-proof device interface is designed at the air inlet of the machine body, which can efficiently isolate impurities at the air inlet and ensure the machine operates more stably during the process.

Product	Y20
Heating power	20KW	17200Kcal/h	68300Btu/h
Voltage/Frequency	220-240V/50Hz
Electric power	165W
Electric current	0.6A
Air volume	800m³/h
Types of fuel	Light diesel oil and kerosene
Fuel tank volume	25L
Fuel consumption	1.95L/h
The working hours of each tank of oil	12.8h
Work pressure	0.21bar
Temperature setting range	5-45℃
Dust-proof and water-proof grade	IP24
Noise	85dB(A)
Gross weight/net weight	31kg/25kg
Product size	1005*477*600mm
Packaging size	950*410*545mm
